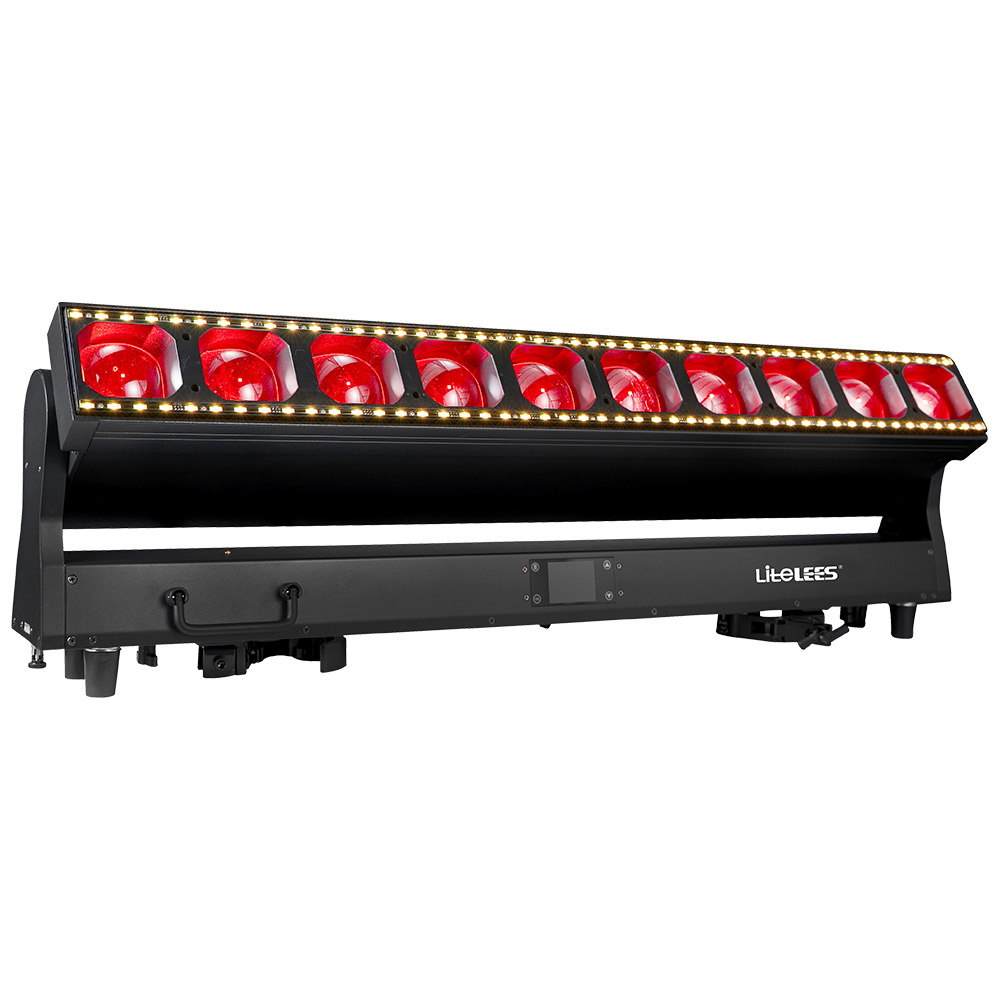

BIG EYE BAR L6010
Super Dotline Effect light Pixel Bar Light with Strip
▪ BIG EYE BAR L6010 is a 3-in-1 powerful bar with a wash beam strobe effect light.
▪ The main section is powered by Osram 10x60W RGBW LEDs and the strip light section has 96x3W cool white LEDs, 96x3W warm white LEDs, and 96x0.5W RGB LEDs. And it delivers stronger brightness, smooth color mixing, and sharp beam effects that are suitable for any environment.
▪ Built with a splicable body connection, the BIG EYE BAR L6010 supports multiple-unit setups for large lighting designs.
▪ BEE EYE BAR 1060 (Super Dotline) Tambora Batten offers individual LED control and dynamic visual programming—for concerts, clubs, touring shows, and immersive stage setups. Whether you're creating sweeping washes or narrow beams, the wide zoom range gives you unmatched versatility.
Specification
Power supply
AC100 - 240V, 50/60 Hz
Power consumption: 900W
Light Source
Main Light Section:10×60W RGBW LED
Strip Light Section:
96 x 3W CW LED
96 x 3W WW LED
96 x 0.5W RGB LED
Individual LED Control
LED Average Life: 20,000 hours
Main Light (White): 6,300K
Effect
Beam angle: 2.8°-31°
Field angle: 5°-46°
Total lumen: 22,400lux
Control
Tilt: 220°
Splicable body connection
Control mode: DMX512/RDM/Art-Net
channels: 17/27/99/108/168
PowerCon: Power in & out
XLR in & out: 3-pin & net
Packed
Net weight: 19.2kg
Carton box size(1-in-1): 110x21x39cm
Weight: 22.2kg
Flight case size(4-in-1):128x58x51cm
Gross weight: 113kg

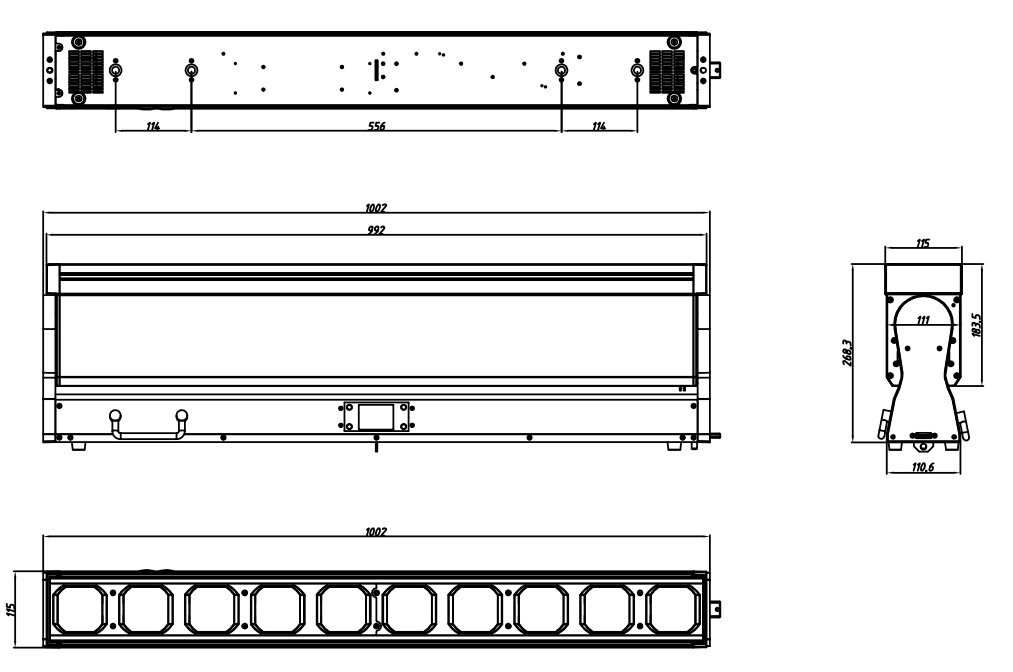

Fixture size

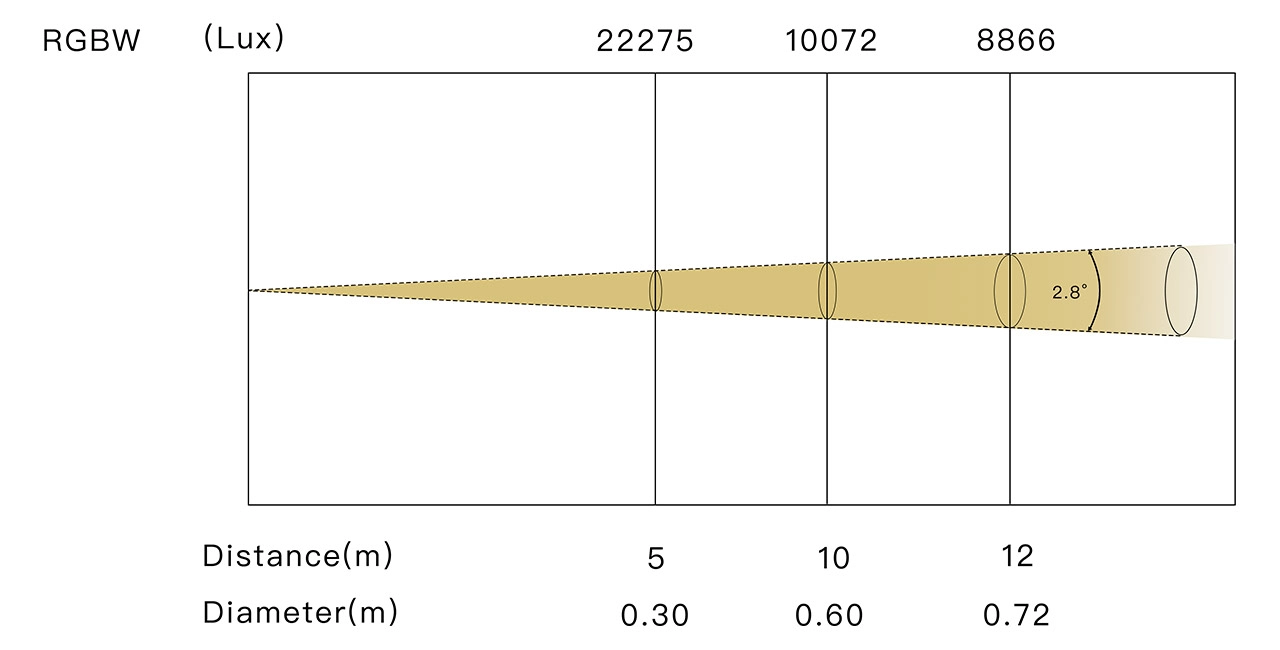

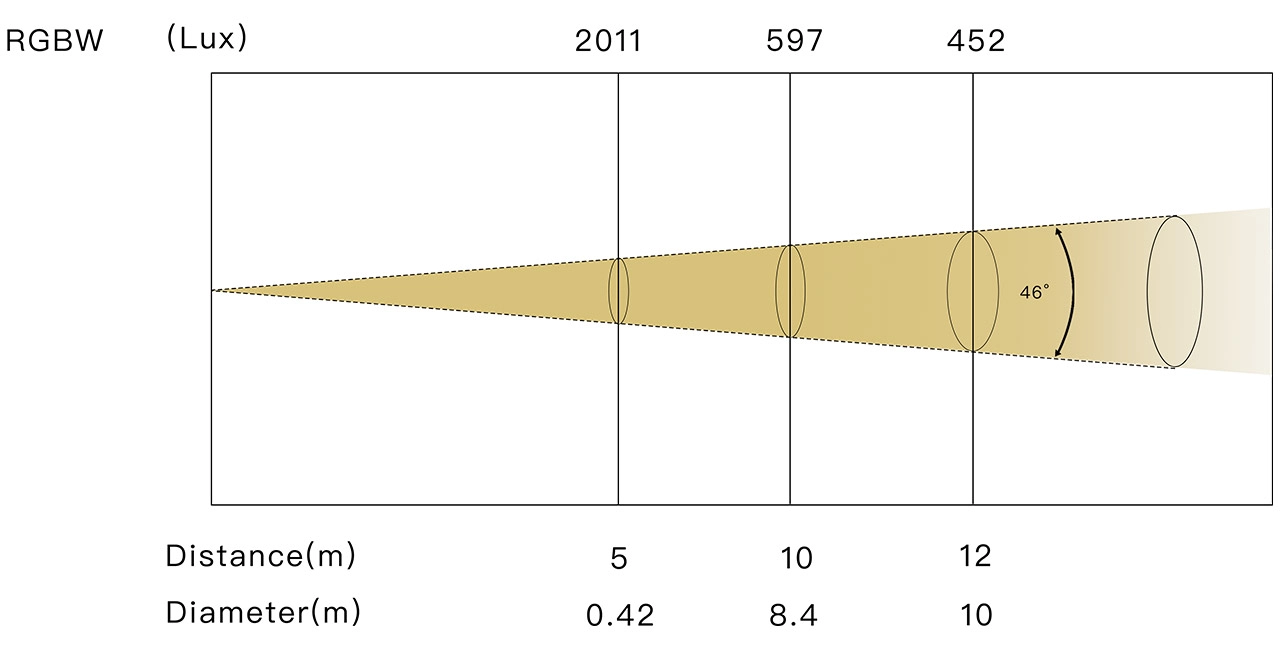

Photometrics

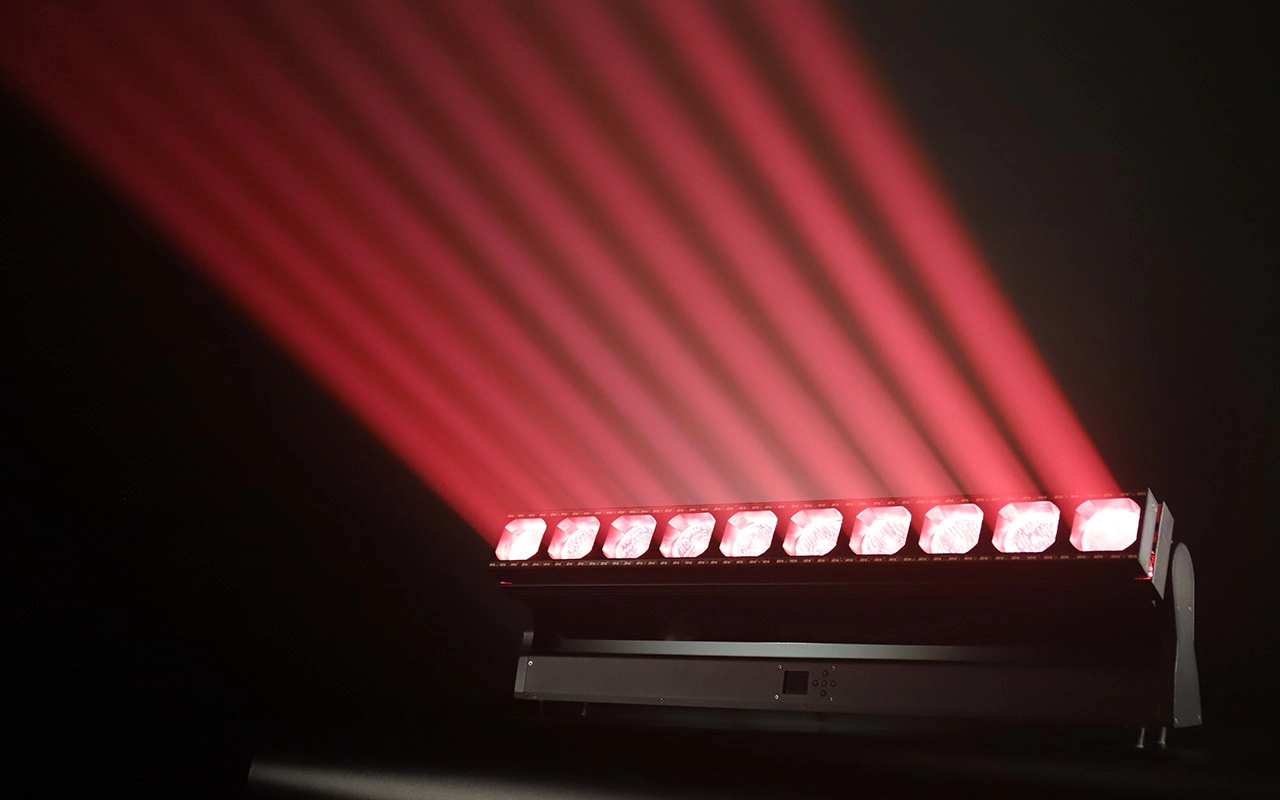

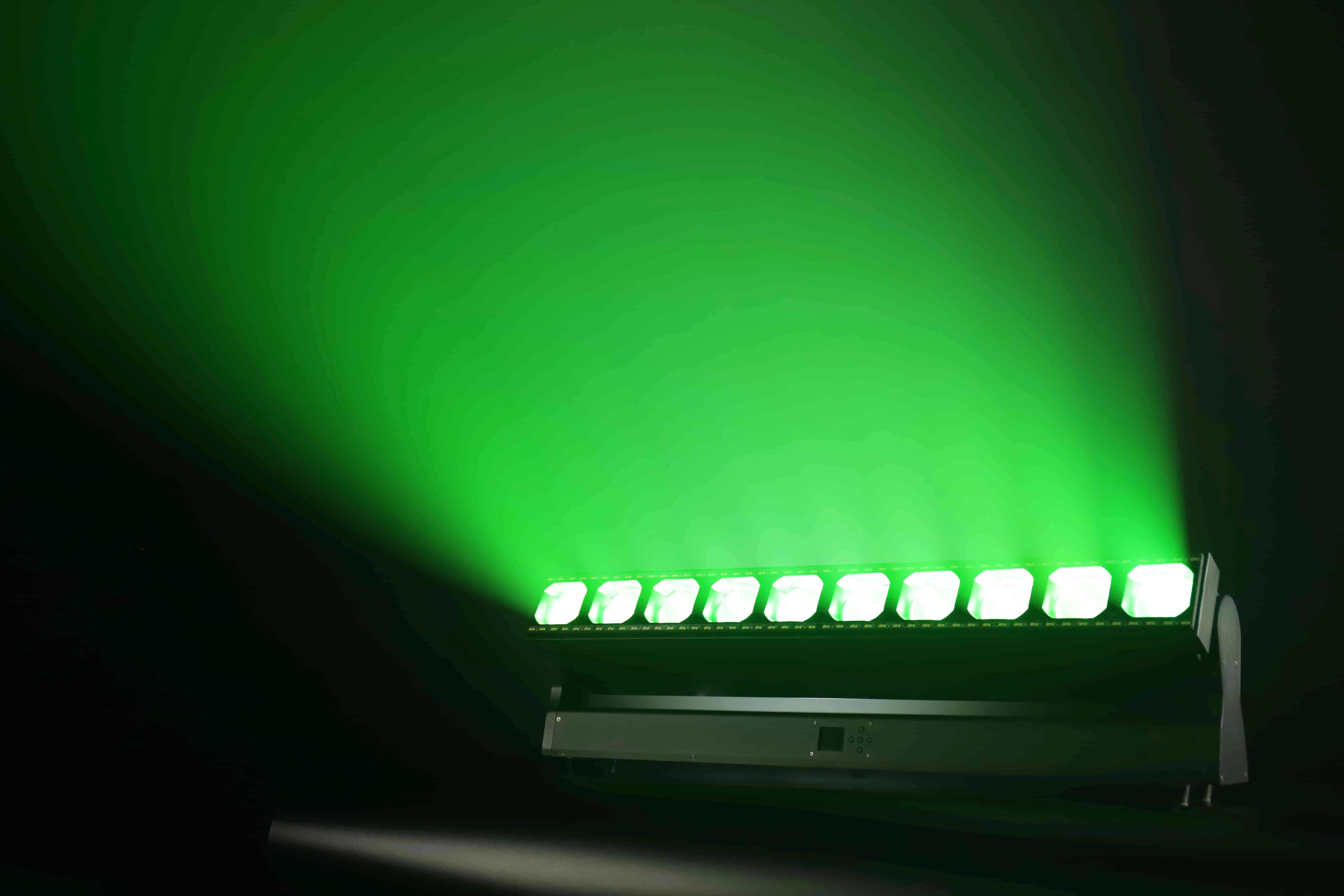

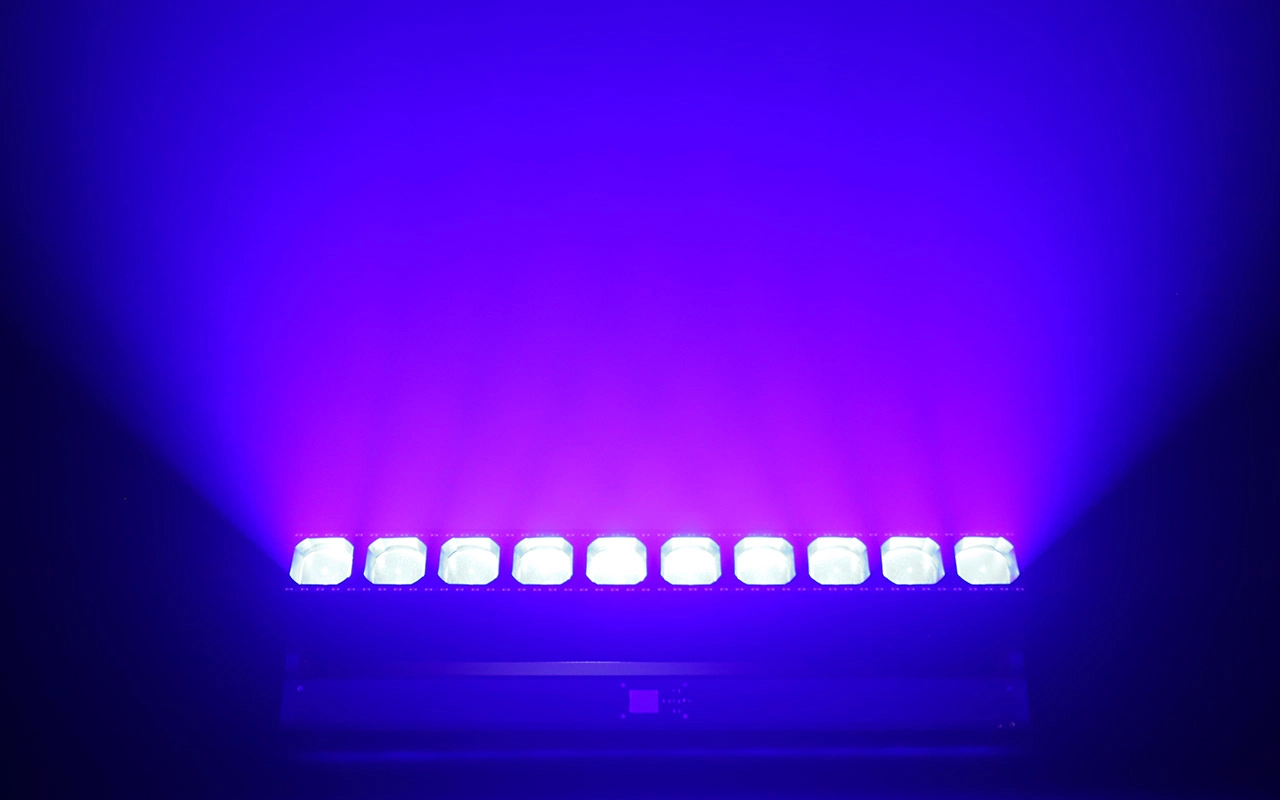

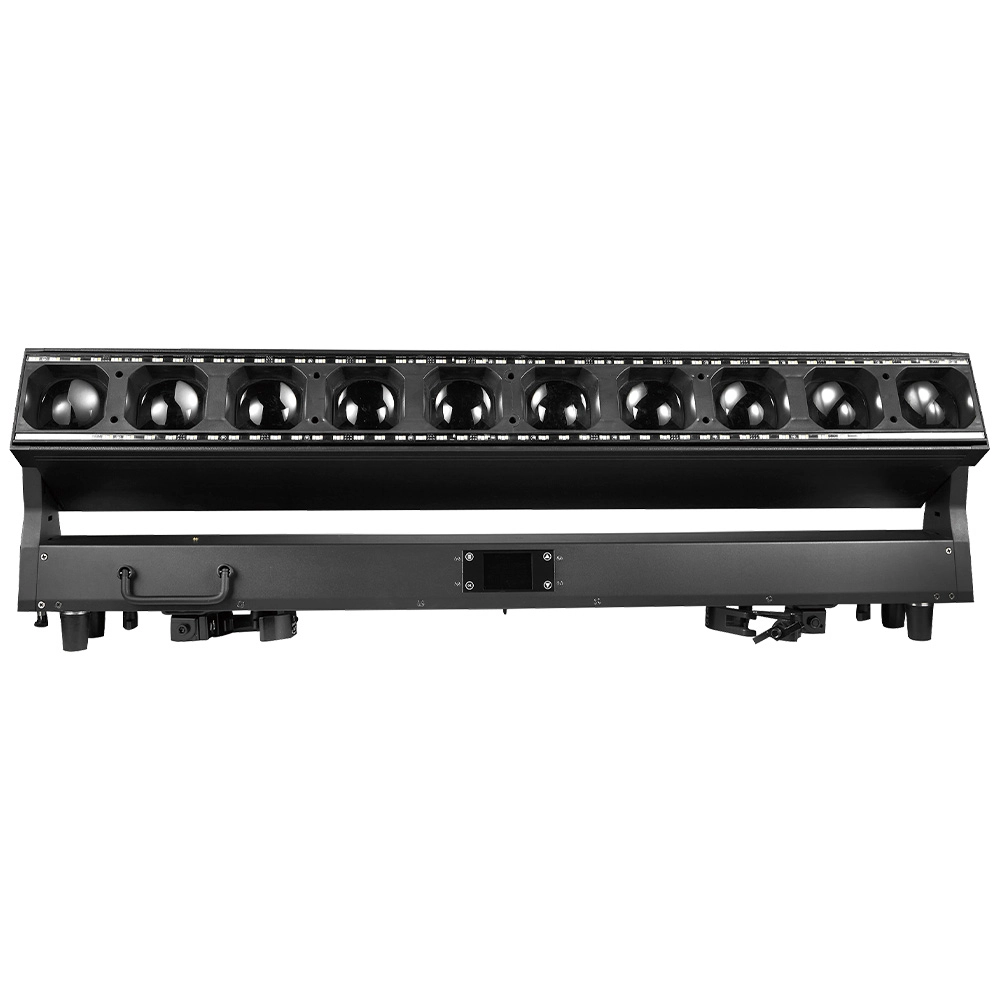

Display from different angles

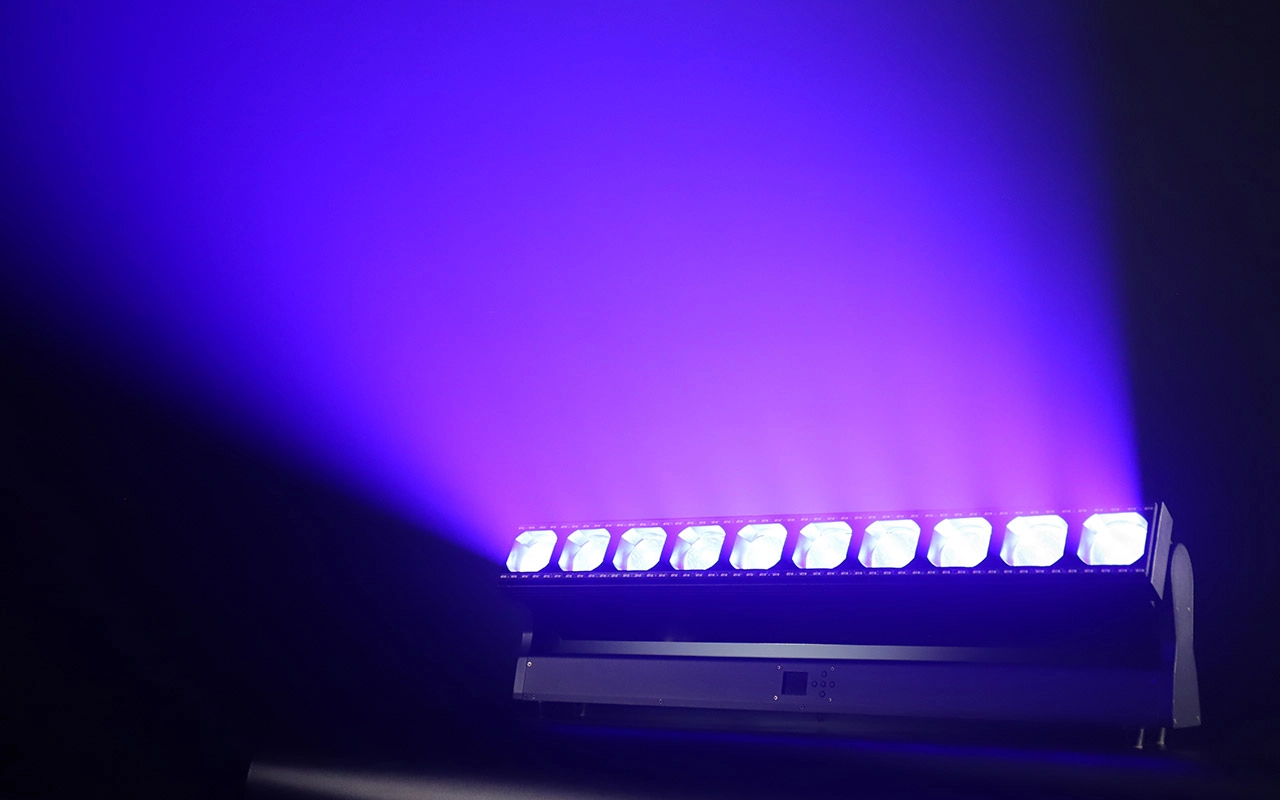

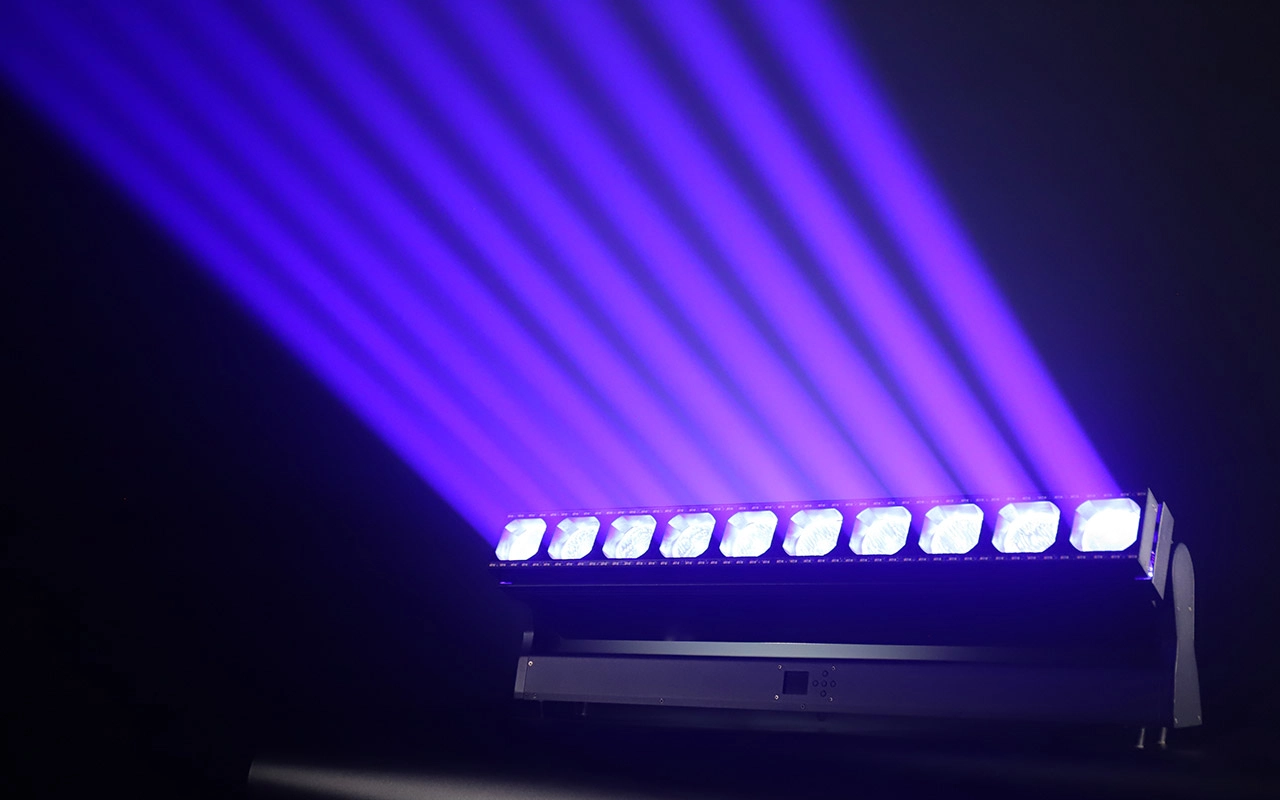

Dynamic video effects

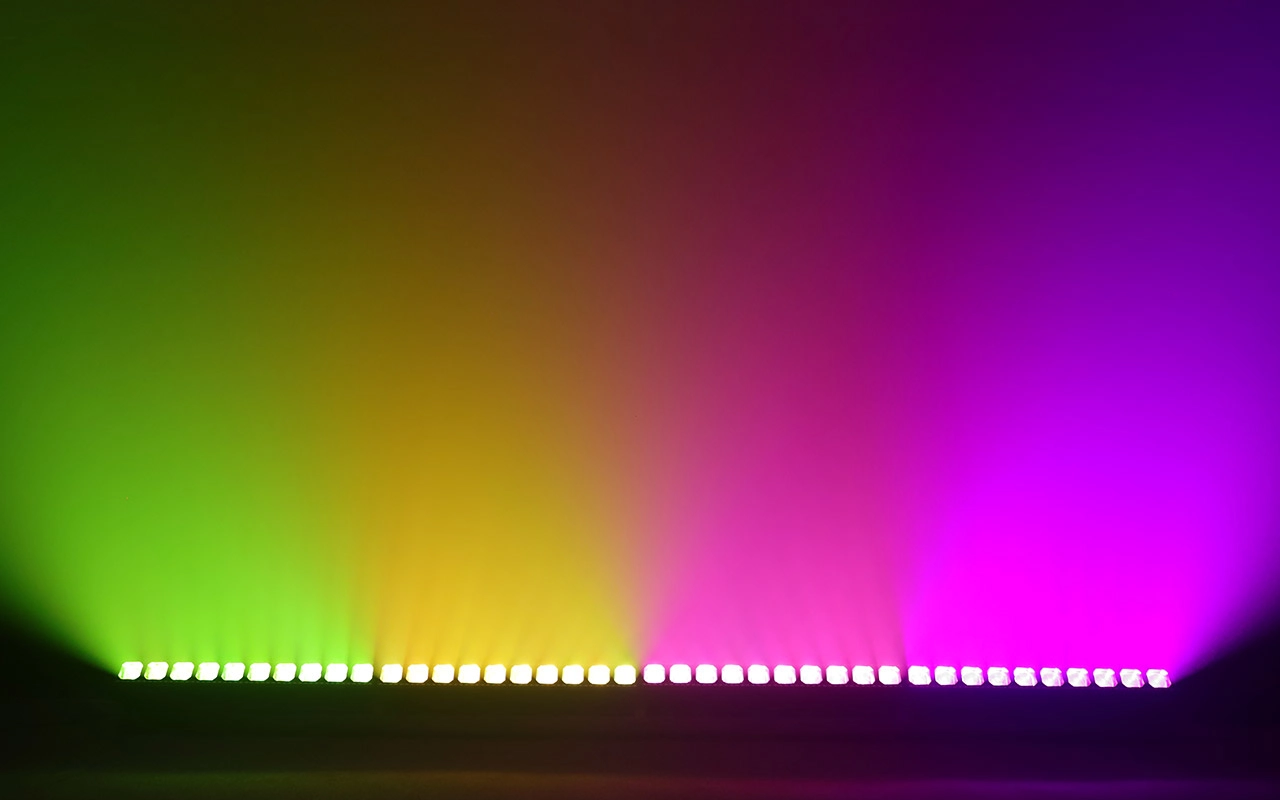

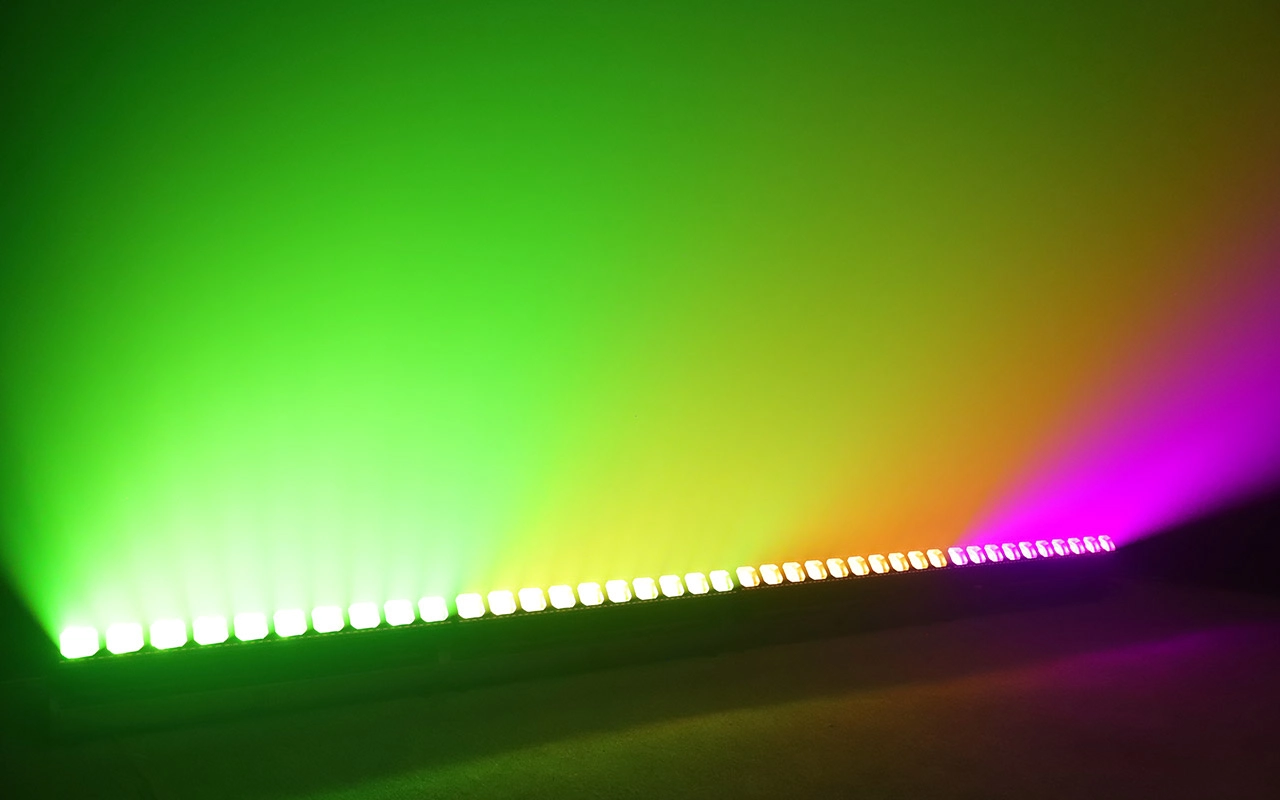

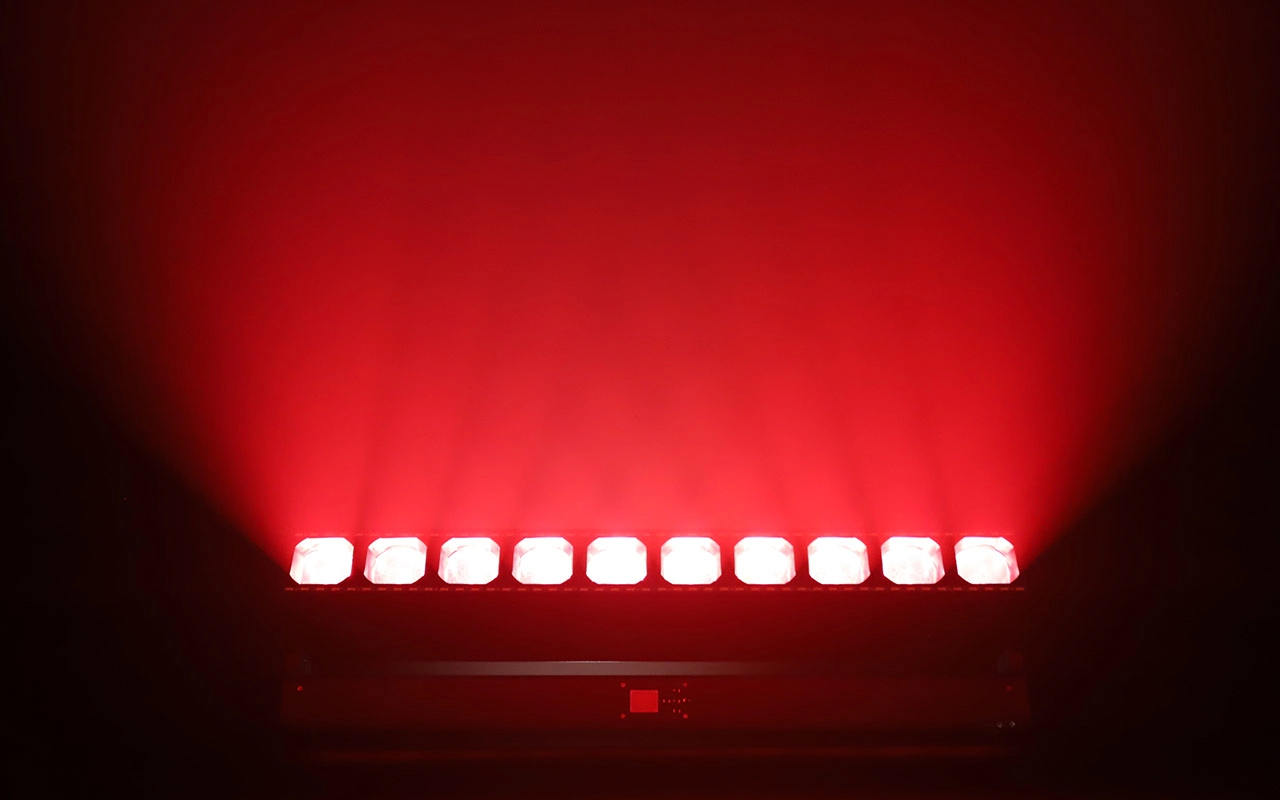

Effect
