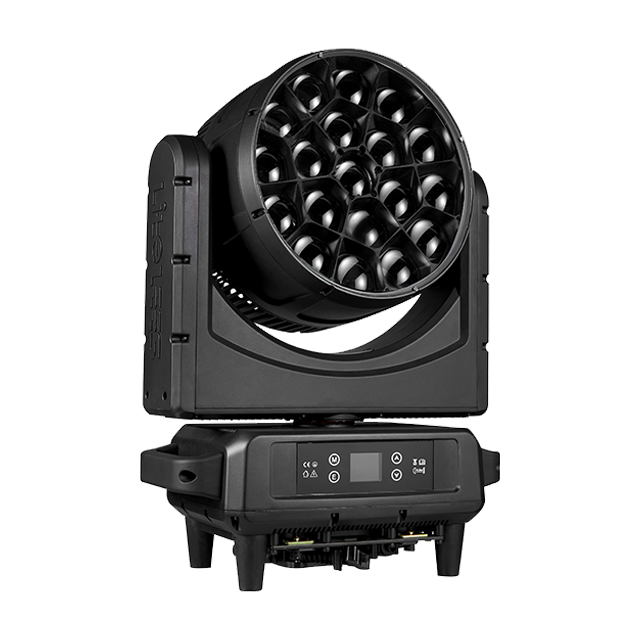

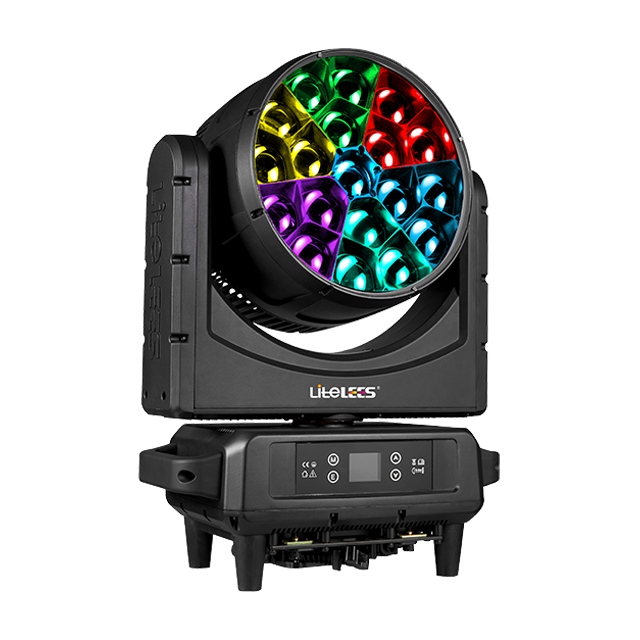

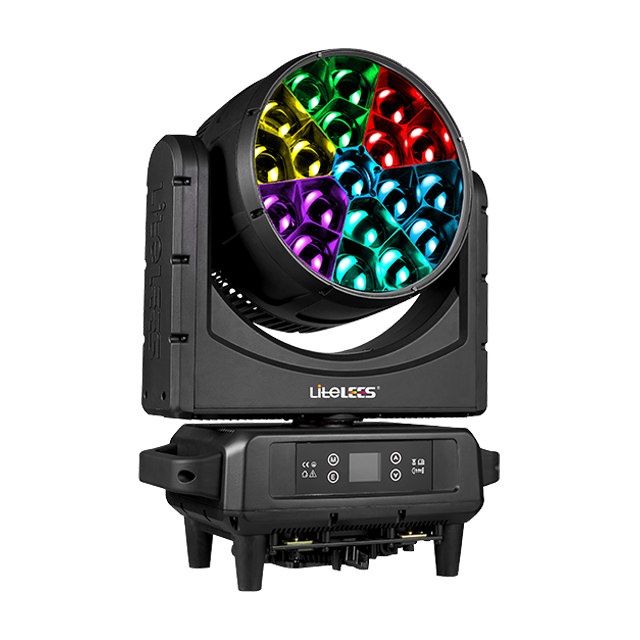

Wash/Beam/Graphic/Effects 4-in-1
Technical parameters
Power Supply
AC100 - 240V, 50/60 Hz
Power consumption: 850W
Light Source
19*40W RGBW 4 in1 Osram LEDs
Individual LED control
Average life: 30,000 hrs
Color temperature: 2500K-9000K adjustable
Effect
Zoom angle: 4-55°, 49885lux@5m@Min angle
Function: Wash/Beam/Graphic/Effects
Front lens can rotate infinitely
With “vortex” and “kaleidoscope” effects
Variable built-in dynamic effects
4 Liner dimming curves
Strobe: 1-25 Hz, random and pulse flash
Pan/Tilt accurate magnetic coding positioning
Control
Pan/Tilt: 540/250°
Control mode: DMX512/DMX+RDM
DMX channels: 21/35/78/92/97

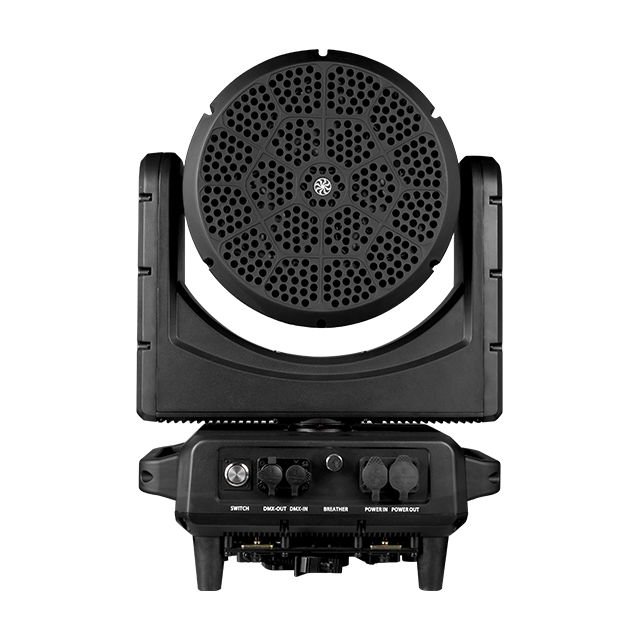

XLR in & out: Seetronic fixed 3-pin waterproof
IP Rating: IP65
Packed
Net Weight:23.5kg

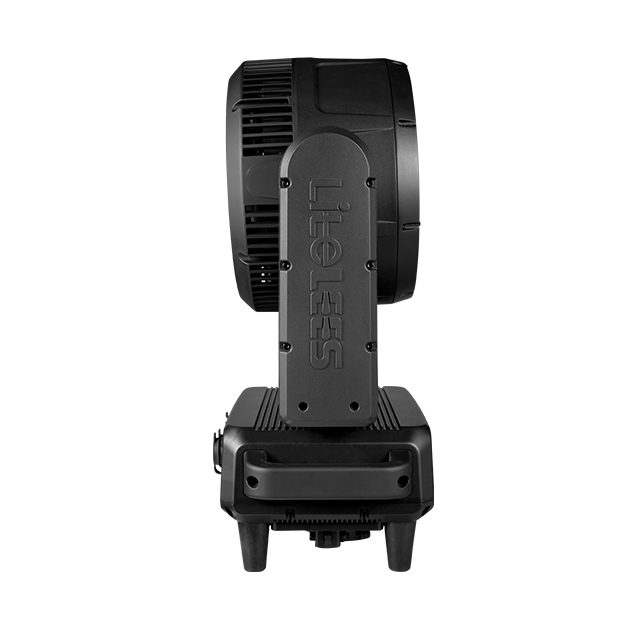

Fixture Size
Photometrics
