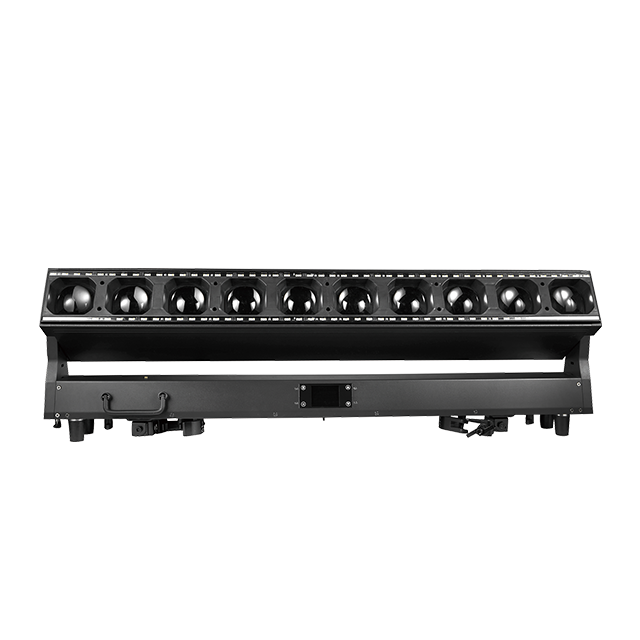

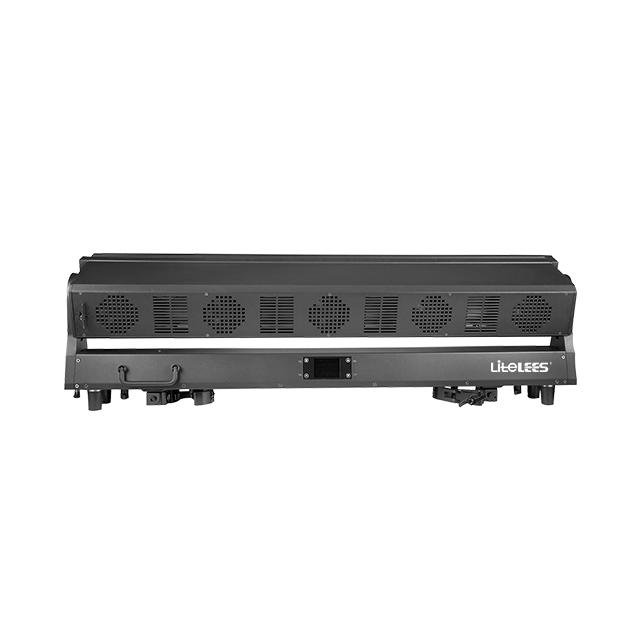

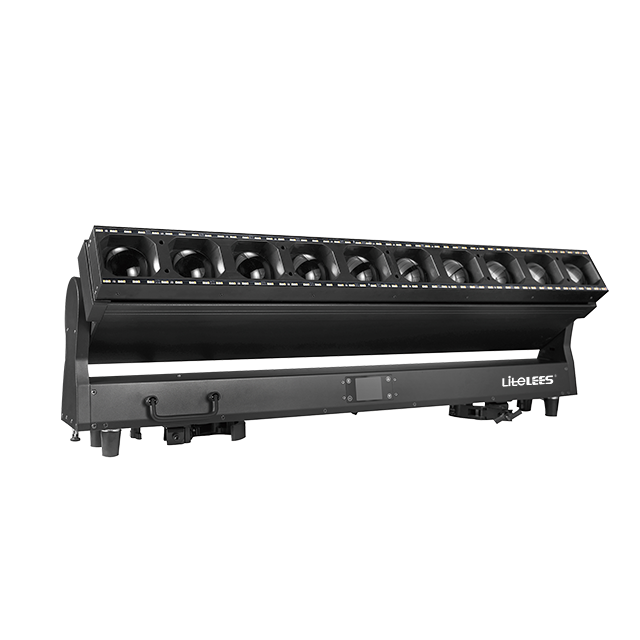

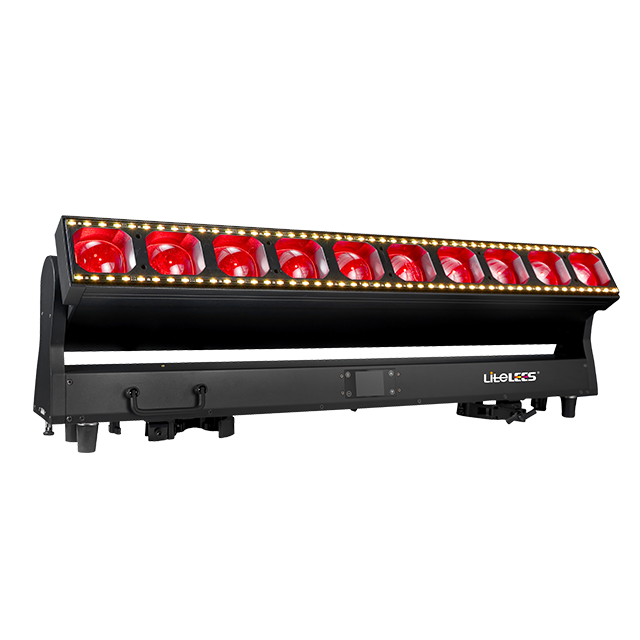

BIG EYE BAR L6010

Availability:


Beam/Spot/Wash 3-in-1


Technical parameters



Power supply

Input power: 100-240VAC, 50/60Hz

Power consumption:1000W



Light source

Main Light Section:10×60W RGBW LED

Strip Light Section:

96 x 3W CW LED

96 x 3W WW LED

96 x 0.5W RGB LED

Individual LED Control

LED Average Life: 20,000 hours

Main Light (White): 6,300K



Effect

Beam angle: 2.8°-31°

Field angle: 5°-46°

Total lumen: 22,400lm



Control

Tilt: 220°

Splicable body connection

Control mode: DMX512/RDM/Art-Net

channels: 17/27/99/108/168

XLR in&out: 3-pin



Packed

Net weight: 19kg

Carton box size(1-in-1): 111×22×42cm

Gross weight: 22.2kg


Photometrics
